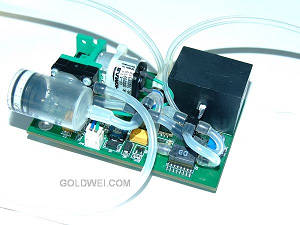

OEM ETCO2 MODULE (END-TIDAL CO2) CO2 MODULE MODEL C200 FOR MEASURING RESPIRATORY CARBON DIOXIDE CO2 SENSOR

ETCO2 Module, or end-tidal CO2, or End tidal Carbon Dioxide Module, ETCO2 Module is an OEM module used in Patient Monitors, Ventilators or Anesthesia Machine to monitor the breath status (ETCO2, CO2 waveform, Real-time CO2, Inspired CO2, Respiratory Rate) by measuring exhalant gas from people. It is useful in the ICU, surgery, anesthesia ward, emergency clinic, etc.

The ETCO2 module Model C200 is the best cost effective product in the worldwide market which helps the patient monitor manufacturers to cut the cost to quite a large extend while achieving the same or better performance and functions as the other ETCO2 modules. The ETCO2 module is a complete data collection and analysis system for monitoring respiratory carbon dioxide concentration. The Model C200 module includes a miniature CO2 sensor, barometric pressure transducer, sampling flow control and a miniature low-power vacuum pump. A microprocessor collects the sensor data and calculates various real-time parameters: instantaneous CO2 concentration, respiration rate, end-tidal CO2, inspired CO2, inspiration and expiration times.

Our sidestream ETCO2 module Model NM-C300 is newly released, you can take a look at it here

OEM ETCO2 MODULE (END-TIDAL CO2) CO2 MODULE MODEL C200 FOR MEASURING RESPIRATORY CARBON DIOXIDE CO2 SENSOR
Model Number: C200
GOLDWEI Item No.: MONM-C200


ELECTRICAL SPECIFICATIONS

Sensor Operating Principle InfraRed Spectroscopy
Energy Emitting Device Proprietary High Efficiency IR Source
Energy Detecting Device Frequency Stable Thermopile
CO2 Range 0% to 20%
CO2 Accuracy 2 mmHg @ < 5.0% CO2 (at BTPS)
< 10% of reading @ >5.0% CO2 (at BTPS)
Breath Rate 2-150 BPM
Dimensions 77mm*52mm*28mm
Weight < 3.0 ounces (< 76 grams)
Operating Temperature Range 5℃ to 55℃
Shipping / Storage Temperature Range -40℃ to 70℃
Automatic Offset Calibration Time and temperature based, as well ason-demand
Input Voltage 5.00 Volts ( 5%)
Interface Highly configurable serial digital interface(TTL/RS232), CO2 and barometric waveform data, Breath Detect Algorithm data
Pneumatics On-board aspiration pump and flow controller Configurable aspiration flows to 250 ml/min (10%)
Power Consumption 480mW (typical with pump on) 1200mW (extreme status)
Warm-up Time 10 seconds
Response Time Detector System 38 mSec (typical)
200mSec (typical)
(Dependent Upon Implementation, Pneumatics and Water Separation Technique)

Download product manual

The ETCO2 module Model C200 (PN: MO-C200, previously NTM2.0) is the best cost effective product in the worldwide market which helps the patient monitor manufacturers to cut the cost to quite a large extend while achieving the same or better performance and functions as the other ETCO2 modules.

The OEM ETCO2 module Model C200 (previously NTM2.0) is a complete data collection and analysis system for monitoring respiratory carbon dioxide concentration. The Model C200 ETCO2 module includes a miniature CO2 sensor, barometric pressure transducer, sampling flow control and a miniature low-power vacuum pump. A microprocessor collects the sensor data and calculates various real-time parameters: instantaneous CO2 concentration, respiration rate, end-tidal CO2, inspired CO2, inspiration and expiration times. Download product manual

The module is highly configurable to meet most OEM implementation requirements. System specifications such as sampling flow rate and floating point data format can be changed by customer.

The host sends commands and receives waveform, breath parameters and command responses on two +5.0V asynchronous serial data lines (TTL or RS232).

HIGHLIGHTS


     Best performance price ratio in the world. The price is clearly lower than other similar module and the performance is better than them.
     Better stability. Better design can wipe off the excursion from temperature, pressure and inconsistent component.
     Better self- protected ability. It allows wrong power supply, humidity in the pipeline.
     Better communication interface. TTL or RS232 can be choiced by customer.
     Better policy of after service. Manufacturer promises that the module can be replaced by a new one if it is not damaged by man-made in one year.
     Longer life. Using long-life IR source (100 thousand hours life).
