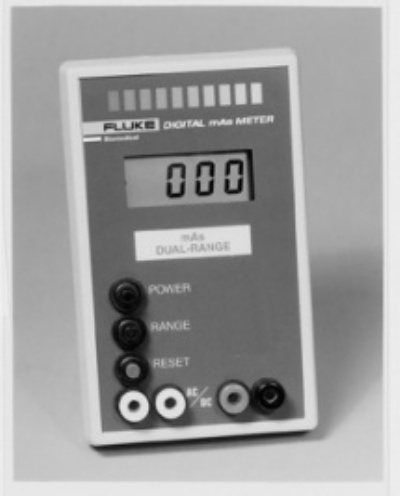

MODEL MA0396 DUAL-RANGE MAS METER

Dual-Range mAs Meter Model MA0396
The Digital mAs Meter is an accurate, low-cost instrument that allows service personnel and biomedical engineers to check and adjust the mA settings of x-ray generators.  This easy-to-use device is calibrated directly in mAs, thereby avoiding the calculations required with more complicated (and expensive) calibration equipment.  The Dual-Range mAs Meter Gammex MA0396 is very sensitive ¨C it can measure increments of 0.1 mAs.  It has a low range of 0 to 199.9 mAs; and a high range of 0 to 1999 mAs.  This meter excels in calibrating the high-current, short-time station where a conventional mAs meter is precluded by tube ratings.  This instrument can be used (after verification of generator timing accuracy) to set all mA stations and verify that photo-timing error does not exceed the limits of good practice.  To use, simply connect the cable to the x-ray generator and make the required exposure.  The mAs reading appears instantaneously on the 4 digit LCD.   A display indicator warns of the need for battery replacement.  The small size and light weight make it convenient to carry around in a pocket or tool kit.  Note: This is an invasive test which requires connection to the generator circuit.
SPECIFICATIONS Range . . . . . . . . 0 to 199.9 mAs                             (¡°+¡± overrange indicator above 160 mAs)                             0 to 1999 mAs (¡°+¡± overrange indicator above 1600 mAs) Accuracy . . . . . . ¡À 2% of reading, ¡À0.2 mAs Drift . . . . . . . . . Zero Display . . . . . . . 4 Digit LCD Input . . . . . . . . . 25 to 1000 mA Operating Temperature. . . . 15 to 30¡ã C (50 to 100¡ã F) Input Jack . . . . . Uses two banana jacks Accessories Supplied . . . . . . 24 inches of cable with banana plugs on one end and insulated                              alligator clips on the other Controls . . . . . . . Power (ON/OFF), Range (high-low), Reset Power . . . . . . . . Single 9 V Alkaline Battery (included) Size. . . . . . . . . . 3.5x8.9x16.8 cm (1.4x3.5x6.6 in) Weight. . . . . . . . 198 g (7 oz)
