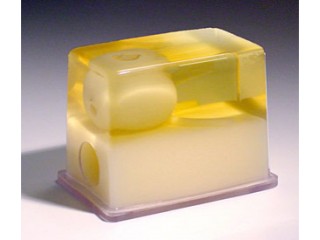

PROSTATE DEMONSTRATION PHANTOM MODEL 058- NON-DISPOSABLE URETHANE PHANTOM FOR PROSTATE IMAGING

The Model 058 is a derivative of the Model 053 Ultrasound Prostate Training Phantom. The Model 058 is durable and appropriate for repetitive demonstration scanning.
PROSTATE DEMONSTRATION PHANTOM MODEL 058- NON-DISPOSABLE URETHANE PHANTOM FOR PROSTATE IMAGING
Model Number: Model 058
GOLDWEI Item No.: UPCS-058


Prostate
Demonstration Phantom

Non-disposable urethane phantom
for prostate imaging

Model 058




The Model 058 is a derivative of the Model 053 Ultrasound Prostate Training Phantom. The Model 058 is durable and appropriate for repetitive demonstration scanning.

The prostate along with structures simulating the rectal wall, seminal vesicles and urethra is contained within an 11.5 cm X 7.0 cm X 9.5 cm clear container.

A needle is embedded within the prostate to demonstrate needle localization. The phantom also contains a simulated lesion and calcification cluster.

This phantom is an ideal demonstration device for rectal scanning.

Specifications:


Container:
Material: Clear PETG

Dimensions:
11.5 cm X 7.0 cm X 9.5 cm

Front probe opening:
3.2 cm diameter

Rear probe opening:
2.6 cm diameter





Background gel:
Similar to water with very little backscatter attenuation
0.20 db/cm/MHz

Urethra:
Dimensions: 0.7 cm diameter
Material: urethane, low scatter

Seminal vesicles:
Dimensions:
7 mm diameter X 10 cm long
Material: urethane


Prostate:
Dimensions:
5 cm X 4.5 cm X 4.0 cm
Material:
Blue urethane,
high scatter
Volume: approximately 53cc

Rectal wall:
Dimensions:
6 cm X 11 cm X .5 cm
Material: Urethane,
Backscatter similar to liver tissue

The Model 058 is a derivative of the Model 053 Ultrasound Prostate Training Phantom. The Model 058 is durable and appropriate for repetitive demonstration scanning. The prostate along with structures simulating the rectal wall, seminal vesicles and urethra is contained within an 11.5 cm X 7.0 cm X 9.5 cm clear container. A needle is embedded within the prostate to demonstrate needle localization. The phantom also contains a simulated lesion and calcification cluster. This phantom is an ideal demonstration device for rectal scanning.

There are no documents download yet.
